Fiber FTTX ADSS 144F Cable Per KM - 100M Span

(0 reviews)

Sold by:
Inhouse product

Price:
$. 2,000.00 /KM

Quantity:
(0 available)

Total Price:
Share:

Description

Fiber FTTX ADSS 144F Cable Per KM Is a high-performance solution designed to cover a remarkable 100-meter span with top-notch reliability. This fiber adss cable (All-dielectric self-supporting cable)is the choice of Fiber ISP systems. It delivers exceptional performance and ensures quality for seamless communication on overhead high-voltage electricity transmission. This fiber optic cable ensures optimal data transmission, while the optical fiber cable design guarantees robustness. Wisth ADSS cable 12 fibers and aerial fiber cable capabilities, this versatile solution excels in various settings, providing efficient communication.



Specification

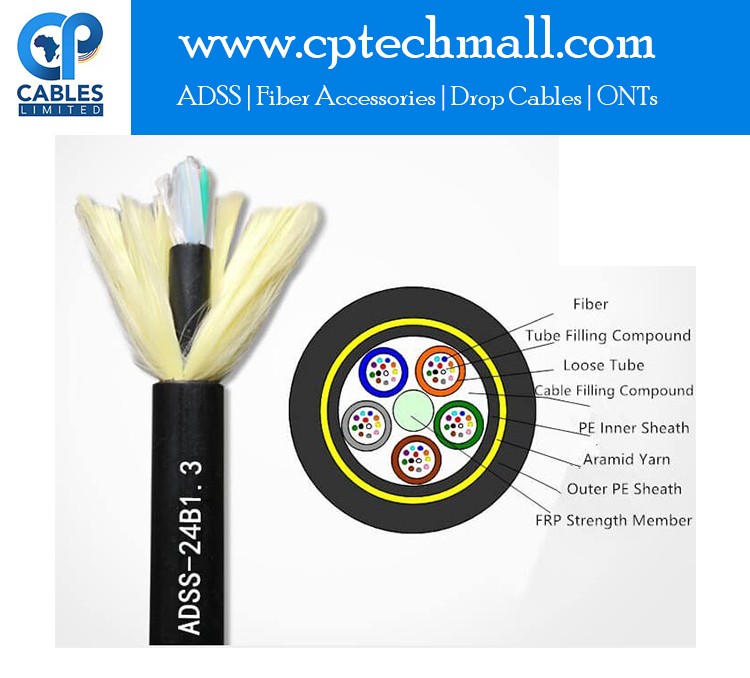

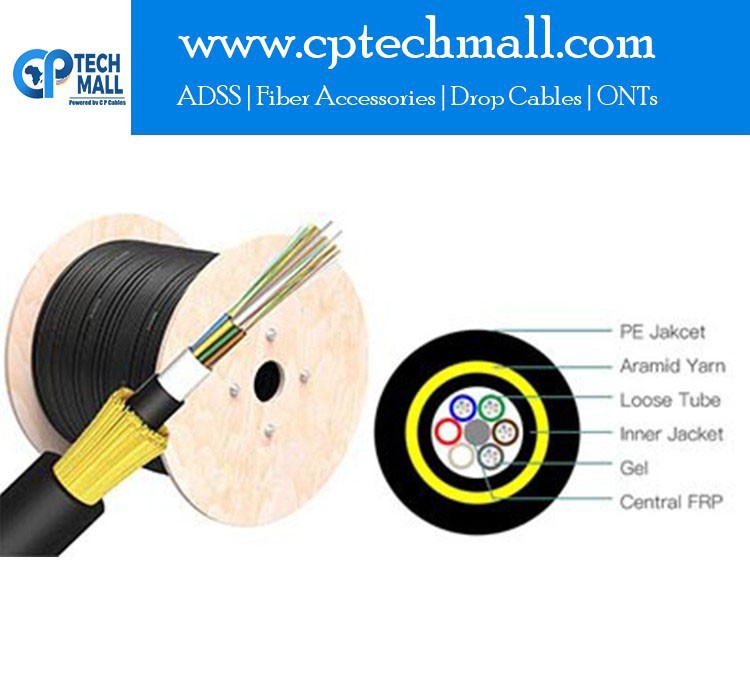

  • Cable Type: The ADSS 144 F is a loose tube cable, which means that the fibers are contained within individual tubes within the cable.
  • Fiber Count: This particular ADSS cable has 144 fibers, which means that it can transmit and receive data from up to 144 different locations.
  • Cable Length: The ADSS 144 F is available in various lengths depending on the requirements of the installation.
  • Outer Jacket: The cable is protected by a weather-resistant outer jacket made of high-density polyethylene (HDPE), which provides protection against moisture, sunlight, and other environmental factors.
  • Fiber Type: The ADSS 144 F uses single-mode fibers (SMF) which allow for high-speed data transmission over long distances.
  • Cable Strength: The ADSS 144 F has a high strength-to-weight ratio, making it suitable for use in areas with high wind speeds or other environmental factors that could put stress on the cable.
  • Installation: The ODSS 144 F can be installed using various methods, including aerial, lashed, or self-supporting.
  • Operating Temperature: The ADSS 144 F can operate in temperatures ranging from -40°C to +70°C, making it suitable for use in a wide range of environments.
  • Tensile Strength: The ADSS 144 F has a maximum tensile strength of 6000N, which allows it to withstand the stresses of outdoor installations.
  • Crush Resistance: The ADSS 144 F has a crush resistance of 3000N/100mm, which provides protection against damage from heavy objects or other external forces.
  • Fiber Color Coding: The fibers in the ADSS 144 F are color-coded for easy identification and installation.
  • Water Blocking: The ADSS 144 F has a water-blocking feature that prevents water from entering the cable, reducing the risk of damage to the fibers.
  • Central Strength Member: The ADSS 144 F also includes a central strength member which provides additional support and stability to the cable.

Overall, the ADSS 144 F is a high-capacity, reliable fiber optic cable suitable for outdoor installations that require high-speed data transmission over long distances. Its durable construction, resistance to environmental factors, high fiber count, and central strength member make it an excellent choice for various applications that demand high capacity and performance.
