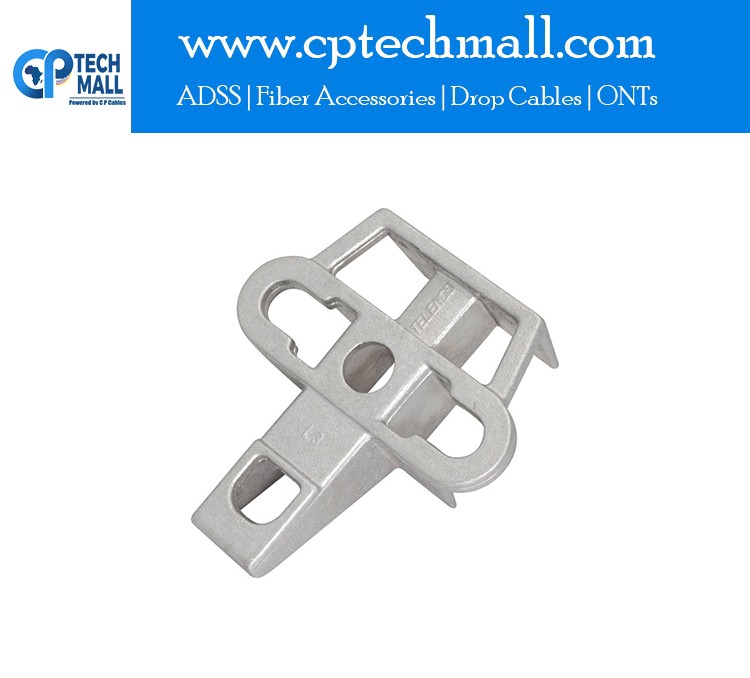

Aluminium Universal Pole Bracket (UPB)

The Universal Pole Bracket is a pole hardware made of aluminum alloy offering high mechanical properties, The UPB bracket has a unique patented design that makes it a universal fitting that can be used in all installation situations. It has five apertures that can be used for aerial cable, drop wires, or stay wires.

Specifications

• Material: Aluminum Alloy
• Total Weight: 220g
• Mechanical strength: From 200 to 930 daN (depending on anchor points and uses)
• Processing Technology: Forming
• Specific Parameter: Working load >5kN  Size>120.3*113.5*43mm
• Packaging Requirement: 100 pcs /carton
• Application: The bracket is designed to be used with stainless steel banding straps to  mount fiber optic cables on wooden metal or concrete poles.
