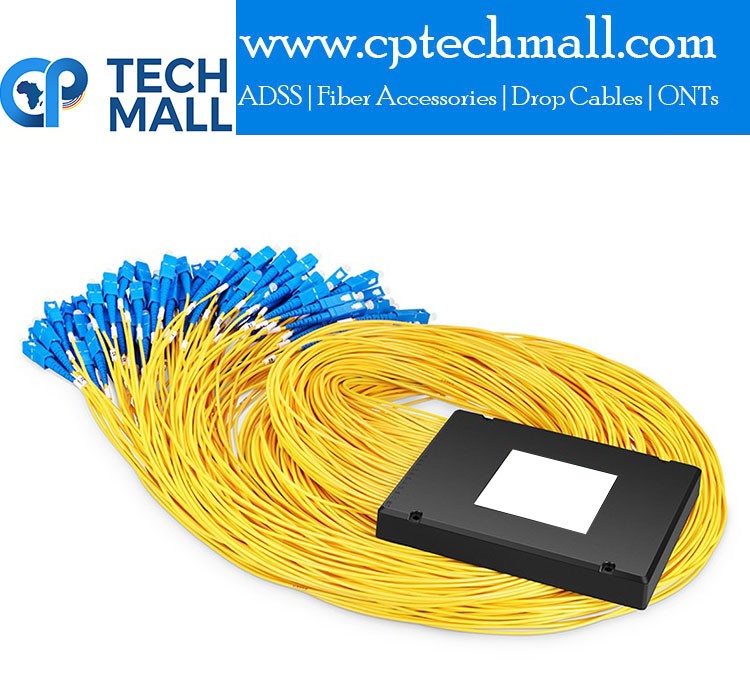

PLC Splitter 1*64 SC/UPC

Description

The 1x64 PLC Fiber Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals.1*64, Module type; 2.0m PVC fiber jacket G657A1, with SC/UPC Connectors; fiber length: 1m; ABS box size.

Specification

• Splitter Type: PLC (Planar Lightwave Circuit) Splitter
• Fiber Type: Single-mode (SM) G657A2
• Split Ratio: 1 x 64 (1 input, 64 output ports)
• Wavelength Range: 1260-1650nm
• Insertion Loss: ≤18.5dB
• Uniformity: ≤1.2dB
• Return Loss: ≥55dB
• Connector Type: SC loss/APC (Angled Physical Contact)
• Cable Type: 2.0mm ABS Box
• Cable Length: 1.5m (input and output ports)
• Operating Temperature: -40°C to +85°C

PLC Splitter SC/UPC 1*64 Insert  Type Applications

• low insertion loss
• Low polarization-dependent losses
• Good spectroscopic uniformity
• wide operating wavelength range: from 1260nm to 1650nm

Application

• FTTx Systems
• LAN,WAN and Metro Networks
• CATV systems
